Space Frame
Apora Space Frame Connector System |
|||
|
The end of 1983, Apora started in the research of space frame component manufacturing in conjunction with DUC (Dutch United Consultants) as a Consultant and PT. Binatama Akrindo as a Contractor to implement the space frame roof jobs in Indonesia. In 1989, Apora started with the export of Space Frame Component to ASEAN Countries. In 1995, Apora found the new connector system called “Apora Bottle Connector System “,
|
||
five years later after registered the application of Intellectual Properties Invention, the patent right “Apora Bottle Connector System” is granted accordingly in Indonesia (Oct 2000), Taiwan (Nov 2000) & PRC (Jan 2002). Since the application of the above system, because of the out-look shape is like “a Bottle“ and is considered rigid, nice-looking and unique of the cylindrical shape difference compare with other system. So the competitor in overseas countries hence calls “Apora Bottle Connector System ” as “ Indonesia Space Frame”. The advance technology machine equipment, plus custom design software with 20 years of space frame components manufacture experience, day to day update the technology has put Apora Space Frame to one of the challenging name in the space frame industry in the world.
| |||
|
|
||
Apora bottle connector-system Apora bottle connector system, founded by Apora 1983. Apora design the space frame connector system with a cylindrical shape. The shape has ability to transfer the compression forces smoothly from the small-end of the bottle-body to the larger part to eliminate any buckling effect to the plate. | |||
 |
Space Frame Is a 3 dimensional steel structural network that consists of 3 kinds of element: node, pipe and connector set The Ball Joint is the most important element as it is the center of several of pipes with having different of forces |
||
 |
The Excellence Feature of space frame system includes rigidity, lightness, quickly erection time, flexibility in design and can be factory finished to any color Space Frame Structure can be designed to any architectural shape, has capability for extraordinary cantilever and long span (up to 100m span) |
||
| |||
 |
PT Apora Indusma develop own system after many years of in depth study into other existing system and have combined the advantages and aesthetic beauty of this system ASSF Apora Smart program for Spafe Frame is Apora tailor design software to analyze space frame component such as Node, Bottle connector set & Pipe |
||
 |
Apora Node is a machining surface node, the accuracy of node diameter can be achieved to 0.1 mm. The variable coin size match the small end of Bottle to the coin surface of node to meet the contacted area perfectly |
||
 |
Apora "Bottle" Connector System consists of Bolt, "Bottle" body, conical spring & Plate to become Apora Bottle Connector Set. Since 1994, Apora Bottle Connector System has been used in many project such as roof for canopy, tribune, multipurpose hall and big stadium |
||
 |
Apora Welding System adopt Gas Metal Arc Welding (GMAW) to do welding plate to pipe. Apora tailor made automatic welding machine make high welding quality and efficiency The Most Apora installer can turn the "Bottle" the body to tighten bolt to the node during installation |
||
APORA SPACE FRAME TECHNICAL DATA | |||
APORA Space Frame Component Range | |||
+ |
Node: | Carbon Steel AISI 1045 Stainless Steel AISI 304 / 316 / 316L Node Range 49.5 mm – 297 mm |
|
|
Bolt: | High Tensile Bolt G8.8 / G10.9 Bolt Range M 12 – M 100 |
|
|
Bottle Connector: | Carbon Steel AISI 1045 Stainless Steel AISI 304 Bottle Range 32 mm – 190 mm |
|
|
Plate: | Low Carbon Steel AISI 1021 Stainless Steel AISI 304 |
|
|
Pipe: | Pipe Range 48 mm – 350 mm | |

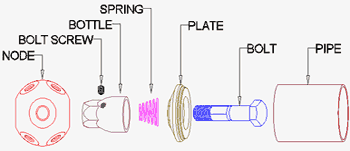

| Component Range Diagram |
 |
||
 |
  |
||
